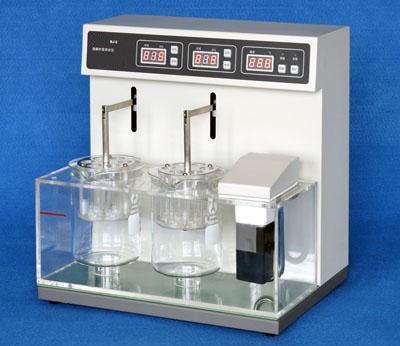

BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions .

Applicable standards.

1. National standard(Chinese codex)/2000/

2. Corporate standard (Disintegration tester)Q/12X0188-2004

Features

1. There are twelve tubes in two basket assemblies;

2. Each test station is driven independently,Auto stop at timing point

3. The bath liquid can achieve an even temperature.

4. A MPU is used to automatically control the temperature,time and frequency of nacelle back and forth ;

5. Timing at will .the preset and real time data can be displayed alternately in time

6. Automation : auto-test .auto-diagnose .auto-alarm

Specifications

1.basket assembly 2

2.Nacelle back and forth frequency (30-32)/min

3.Nacelle back and forth range (55±1)mm

4.Automatic time range 1 to 900 minutes

5.Accuracy of controlling temperature room temperature to 45 ℃

6.Temperature precision: +/-0.5℃

7 Minimum distance between two basket 25+/-2mm

8.Power 220V/50HZ/600W or 110V/60HZ/600W

9.Dimension (400×300×420)mm

10.Weight 16KG
