Medicine Water Blending Tank



  Description:

  1.Such series vessel has the functions of heading and heat preservation,manufactured,pressure-tested and checked in accordance with theTechnology sepcifications for steel welded vessel

  2.The standard specifications from 100L to 6000L and order-design or order-manufacture are all available

  3.The sealing of agitating shaft is of mechanical sealing of imported health class.The speed reducer is controlled by inverter is available.It can prevent overload.

  4.The joint is of quick-acting type in compliance with ISO standard.The inner part is made of 304 SST

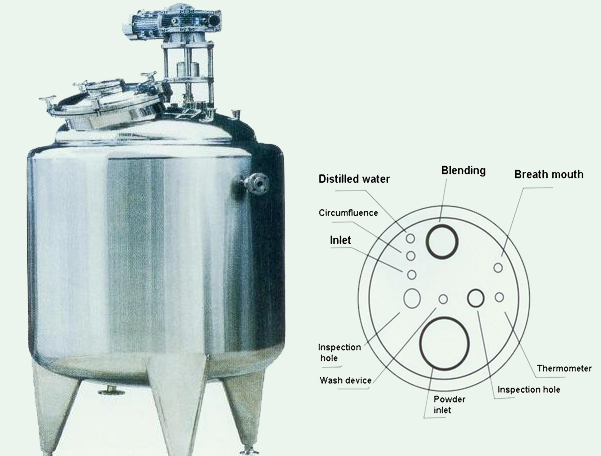

  5.At the tank body are respectively fluid level gauge(the mode is non-contact supersonic,static-pressure transmission or glass tube),breathing apparatus,sterilization steam opening,thermometer(digital-indicatedtype or dial type),CIP universal tank-cleaning device,viewing mirror at lamp hole,some fluid inlets & outlets and manhole.

  Technical parameter:

SPECIFICATION

(L)

Reference Size(MM)

D

D1

H

H1

H2

§

DN

100

400

600

1600

1050

250

3

32

150

400

600

2000

1450

250

3

32

200

500

700

2000

1450

250

3

32

300

600

800

2000

1450

250

3

32

500

800

1000

2000

1350

330

3

40

600

800

1000

2200

1550

330

3

40

1000

1000

1200

2600

1750

330

4

40

1200

1000

1200

2800

1950

330

4

40

1500

1100

1300

2850

1950

330

4

40

2000

1400

1600

2500

1650

330

4

40

2500

1400

1600

2850

2000

330

6

40

3000

1500

1700

2900

1900

330

6

40

4000

1700

1900

3000

2100

330

6

40

5000

1700

1900

3800

2850

400

6

50

6000

1800

2000

3800

2850

400

6

50
