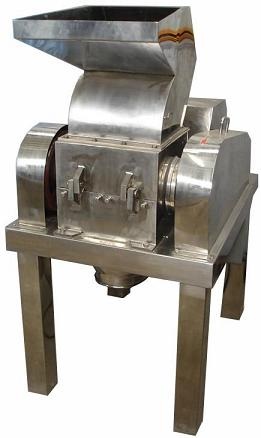

Coarse Pulverizer CSJ Series

  Main Introduction:

  Any material,drifted into grind chamber through feed bucket,punched by knife edges and knife stands,cut and grinded simultaneously by revolving and fixed knives,and due to the central force of revolving object,automatically runs to exit.

  Technical Parameters

Model

Production

Capacity/kg/h

Power

Feeding size/mm

Crushing fineness/mm

Overall dimension/mm

Weight

80

10-50

2.2

≤50

0.5-20

380*550*100

170kg

120

300-300

3

≤50

0.5-20

400*600*1000

220kg

200

50-450

4kw

≤100

0.5-20

500×700×1100

300kg

400

100-800

5.5kw

≤150

0.5-20

780×800×1300

380kg

500

150-1000

7.5Kw

≤200

0.5-20

840*850*1450

490kg

600

200-1500

11kw

≤250

(Rubber max 200mm)

0.5-20

800×700×1300

660kg

800

300-2000

15kw

≤250

(Rubber max 200mm)

0.5-20

1100*900*1400

850kg
