Home > Products > RAW MATERIAL MACHINERY > GranulatorGranulator

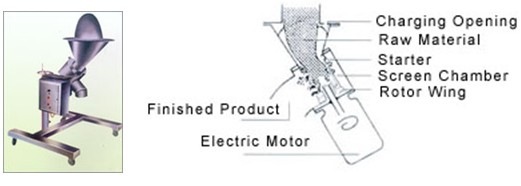

KZL Series Quick Granulator
Main Introduction:
KZL series swift granulate machine is widely applied in the pharmaceutical,chemical and food industries in good effect.Reasonably designed filtration net and pole pieces can grind large blocks of fragile materials.On the basis of centrifugal force theory,filtration net with special holes could be applied to screen and filtrate fine.Special abrasion net pole pieces can grind and screen solid particles and grind large blocks of gathering materials.This machine can replace swing type granulators
Technical Parameters:
|
Type |
KZL-80 |
KZL-120 |
KZL-160 |
KZL-200 |
|
Product capacity(kg/h) |
50-100 |
100-200 |
150-300 |
200-400 |
|
The mesh hole diameter (mm) |
1-8 |
1-8 |
1-8 |
1-8 |
|
Power ( kw ) |
0.75 |
1.1 |
1.5 |
2.2 |
|
Roll speed (r/min) |
Adjust speed by frequency conversion |
|||
|
Overall Size(mm) |
650*450*1000 |
1000*800*1200 |
1060*850*1350 |
1100*1000*1500 |
|
Weight (kg) |
45 |
120 |
150 |
200 |
