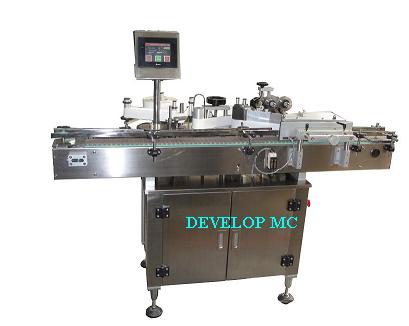

Round bottle stick Labeling machine YT type

  Descriptions:

  The intelligence series labeler is using transistor modular and microcomputer chips; various parameters can be input by touch screen interface.The machine will automatically display and monitor the working status after operation.The machine is easy to operate.The machine can be adjusted to the best results according to the diameter of the bottles and the length of the label.It is widely used in many industries such as medicine,food,cosmetics,pesticide,health products etc.

  Coding system (Optional)

  Technical Parameters:

  Bottle Specification: OD30-100mm Height 65-260mm

  Label type: self-adhesive labels

  Label size: height 10-80mm,length: 15-150mm

  Capacity 80 – 120 bottle/min

  Label roller inner diameter: 76mm

  Label roller outer diameter after load labels: 300mm

  Power: 300W

  Voltage: 220V,50-60 HZ

  Size: 1600 * 700 * 1400

  Transport belt size: L*W=1600*95mm

  Net weight: 200 KGS
