Home > Products > PACKAGING MACHINERY > Bag packing machineBag packing machine

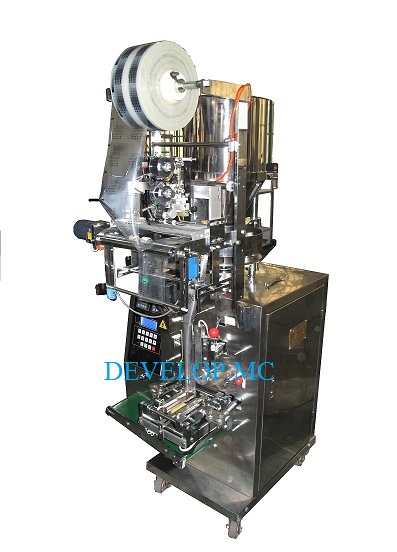

DCK 200/240/300 granule packaging machine
Main Introduction:
This series pack granular products,such as seasoning,monosodium glutamate,sugar,tea,Coffee,pepper,desiccating agents and seeds,etc.This series packing machine is skilful,special and beautiful figure,all parts touching with raw material are Stainless steel which accord with healthy standard.After over ten years experience,this series machine function is stable and widely used in pharmaceutical,food,chemical etc industries.
Technical parameters:
|
Specifications |
DCK200 |
DCK 240 |
DCK 300 |
|
Method of Measurement |
Cup dosing Type |
||
|
Bag forming &Sealing method |
Three side seal |
Three-side/Four-side Sealing |
Three-side/Four-side/back seal |
|
Range of filling |
0-100ml |
0-100 ml |
0-330 ml |
|
Packing Speed |
20-60 bag/min |
20-60 bag/min |
20-60 bag/min |
|
Bag Size in(mm) |
W:30-100 mm |
W:10-120 mm |
W: 10-150 mm |
|
Bag Size in(INCH) |
Width: 0.4-4.72 Length: 1.18-3.9 And can be made to need |
Width: 0.4-4.72 Length: 1.18-6.1 And can be made to need |
Width: 0.4-5.9 Length: 1.18-6.1 And can be made to need |
|
Total Power |
720w |
1400W |
1600W |
|
Voltage |
380V or 220V or Made to need |
||
|
Weight |
200kg |
200kg |
250kg |
|
Size |
625*751*1558mm |
625*751*1558mm |
930*730*1700 mm |
