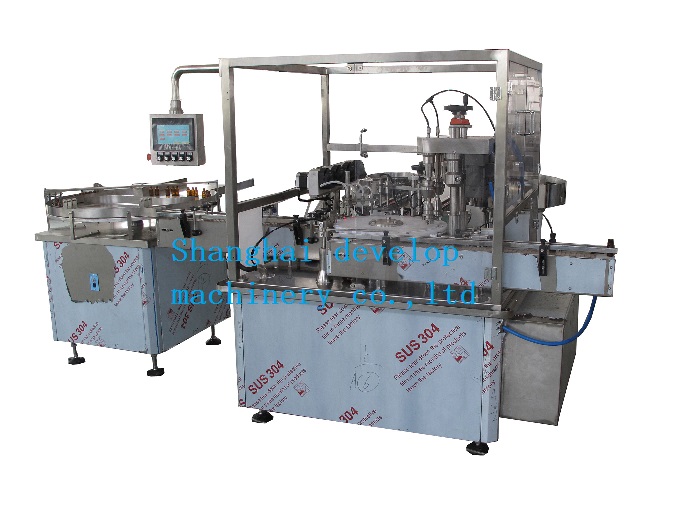

　　GF-4J Essential oil filling plugging and Capping Machine

　　1.Purpose

　　This equipment is mainly used for filling,tapering and capping processes,a full set of automated production equipment,save labor,increase production,can be used to quantify the production of small and medium production line.

　　2.Main components working principle and characteristics:

　　2.1 Filling part metering peristaltic pump filling to ensure filling accuracy.

　　2.2.Filling part of the needle probe into the filling,to prevent liquid overflow,frothing,etc.,filling needles made of 316L.

　　2.3.Gasser disc using the positioning stopper,and modified into new pneumatic suction plug,boom,put the plug than conventional pneumatic corking yield,will not damage the inner plug,improve the passing rate.

　　2.4.Stamped part is stamped disc positioned to ensure precision stamped,and with sensors,no less than a bottle cap.

　　2.5.Capping part transverse torque capping,capping adjustable intensity,auto-skid device,not galling bottle; bottle not turn with the turntable will not scratch the bottle,effective protection of the beautiful packaging materials and equipment hand wheel adjustment devices (including the position of the display),adjust the height of different aspects of production specifications.

　　3.Technical Parameters

　　Use Specifications: 10-20ml

　　Filling Head: 4

　　Plugging heads: 2

　　Capping heads: 2

　　Production speed: 70-90 bottles / min

　　Qualified rate: ≥99%

　　Power source: 220V,50Hz

　　Total power: 2.5KW

　　Dimensions: 3000mm * 1350mm * 1650mm

　　Weight: 950kg
