Home > Products > PREPARATION MACHINERY > Ampoule filling machineAmpoule filling machine

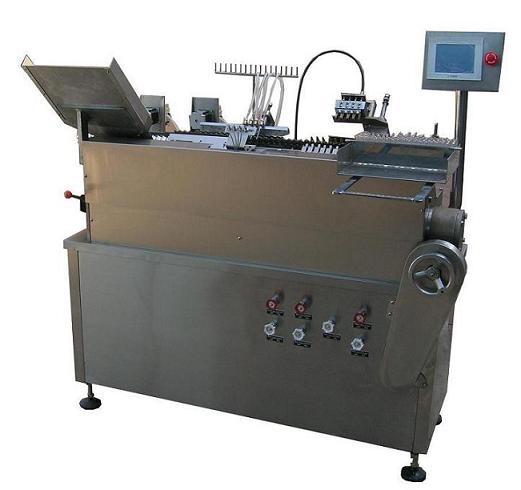

Ampoule filling and sealing Machine,ABF-4B
This machine is Touch screen control+ peristaltic pump filling type.According to output capacity,can classify machine to three type: 2 needle,4 needle,6 needle,8 needles.According to specification of ampoule bottle,can classify machine to 1-2ml type,5-10ml type,20ml type or 1-10ml type,5-20ml or can be customed.
The machine is a new generation of the ampoule drawing,filling and sealing combined equipment for injections .It adopts the rectangular feeding instead of the traditional ampoule feeding methods .In such case,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch.It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously.
Technical parameter:
|
Model |
4B/1-2 |
4B/5-10 |
4B/5-20 |
|
|
Specification(ml) |
1-2 |
5-10 |
5-20 |
|
|
Output(pcs/min) |
120-135 |
90-100 |
60-100 |
|
|
Power supply |
0.55kw,220V/110V,50/60hz |
|||
|
Fuel consumption |
Pipe gas m3/h |
2-2.5 |
||
|
LPG kg/h |
1 |
|||
|
Consumption of Oxygen kg/h |
7 |
|||
|
Overall dimensions |
1440*800*1300 |
1540*980*1500 |
||
|
Weight (kg) |
300 |
330 |
350 |
|
