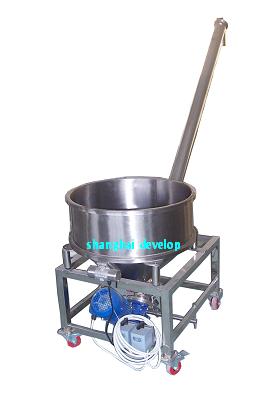

Auger conveyor & screw feeder,RLX type

Description:

  This Vibrating Screw Charging Machine can convey sorts of material.Combined with the package-machine of our company,it can do material situation tracing,it also can be used separately.Complete machine made in stainless steel,except for the electrical machine,gearing,and the framework.

Characteristics:

  Vibrating screw feeding machine is composed of double motor,feeding motor,vibrating motor and each switch control.

  Hopper is adjustable and vibrational which make material to be flowing easily.It is good to material.

  Hopper is separate from twisting shaft.Structure is reasonable and easily loading and unloading

  Characteristic dustproof,bearing won’t be polluted by the dust and powder.

  To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally,storing materials at the bottom of hopper pipe,taking out the whole screw.

Technical Parameter:

Model

RLX-2

RLX-3

RLX-5

RLX-8

transport Capacity

2Steres/hr

3steres/hr.

5steres/hr.

8steres/hr.

Power Supply

550W

750W

1.5KW

2.2KW

Diameter of pipe

φ102mm

φ114mm

φ141mm

φ159mm

Hopper Volume

150L

Power Supply

3P 380V 50-60Hz

Charging angle

General 45 degree,special inquirement 30degree,60degree

Charging Height

General1.85meter,Different feeding height could be designed

Total Weight

130kg

150kg

200kg

250kg

Overall Dimensions of Hopper

1150×850×1000mm

Remark

Other charging capacity could be designed
