　　Main Introduction:

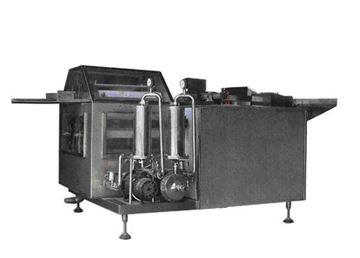

　　This machine is applied to wash vial bottles etc glass bottle.Structure is rotate type drum and with bottle feeder and bottle dialer.The bottle feeder will arrange the bottles in line and send them to bottle dialer,two dialers will push four bottles after one round cycle,the drum will rotate intermittently,the bottles inside drum will rotate by the drum.Bottles will be cleaned by cycled water,purified water and purified air to finish the whole washing process.

　　This machine can be applied for production line.

　　The advantage is stable running,reliable action,good effect of washing and matched with hydrosphere process system.

　　Technical parameters:

　　Output capacity: 60bottles/min

　　Suitable bottles: 50ml-500ml vial vottle

　　Cycled water consumption: 0.5m³/h　　　　pressure: 0.2-0.3MPa

　　Pure water consumption: 0.5m³/h　　　　　 pressure: 0.2-0.3MPa

　　Distilled water: 0.4m³/min　 pressure: 0.2-0.3MPa

　　Voltage: 380V/220v,50/60Hz,3 phase

　　Power: 3Kw

　　Overall size：2000×1400×1500mm
