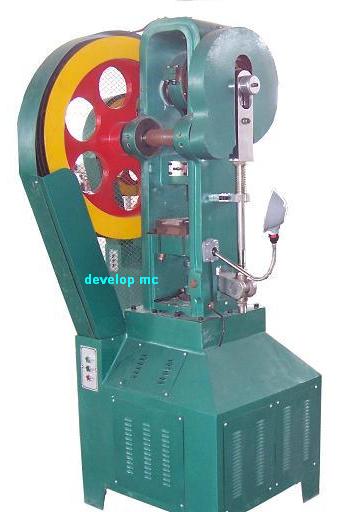

FTP12-45 Flower Basket Single Punch Tablet Press

  Features:

  FTP are the small continuous automatic tablet press which is one of the essential equipments for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical,chemical,food,electronics industries.It can be used to press medicinal tablets,catalysts,candies,caloium coffee pills,powder metallurgical parts electronics components,various tablets of pesticide and fertilizer etc.in small-batch production,laboratory and hospital.The machine can press special-shaped,ring like tablets of different kinds,and can also process the tablets of pesticide both sides are impressed trademarks,letters and simple patters

  Technical Parameters:


Type FTP 12 FTP15 FTP18 FTP28 FTP38 FTP45
Working pressure 12T 15T 18T 28T 38T 45T
Up punch max working high 60 110 110 130 130 130
Round die Filling depth (mm) 50 60 60 70 70mm( can custom
to max 90mm)
70mm( can custom
to max 95mm)
Ring die filling depth(mm) 40 50 50 60 60 60
Max medicine tablet diameter (mm) 36 40 48 64 80 96
Max salt tablet diameter mm 40 50 60 80 100 120
Max tablet thickness, ( mm) 25 30 30 35 45 47.5
Middle mould diameter 70 100 115 140 140 170
Product capacity Pieces/min 25 25 25 25 25 25
Motor power 3KW 3.8KW 3.8KW 4KW 4KW 5.5KW
Over all size 800*950*1900 900*800*2000 900*1000*1950 900*1050*2000 1000*1100*2050 950*1050*2100
Weight 750KG 900KG 1000KG 1200KG 1500KG 2000KG
