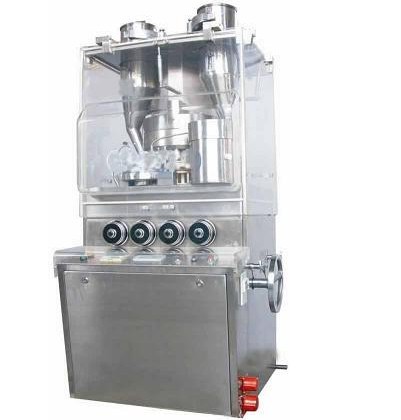

ZPW -20 Rotary Tablet Press

General Tablets type:

  ZPW20 Rotary Covered Tablet Press adopts a fully enclosed structure,with the operation compartment isolated from the outside,ensuring the cleanness in the tablet compressing area without cross contamination.The compressing compartment is wholly made of stainless steel,which is in compliance with the GMP requirement on the production of pharmaceutical products.

  The machine adopts the adjustment of speed by means of frequency inversion,which is easy in operation and wide in the scope of adjustment of speed.Disintegrated structure is adopted for the turret,with the top of the table directly in contact with the pharmaceutical materials made of stainless steel and hardened by special technological process,resulting in the remarkable improvement the stability and resistance to wearing.

  The lubrication system of this machine can ensure the oil supply to every lubricating point,reducing the wearing of the worm-gear box and the tracks,and extending the working life of the machine.

  The electrical part adopts programmable control,with multi automatic control functions such as stopping of the machine on overload,insufficiency in the core material hopper,etc.It has a double detection mechanism by photo-electric switch and pressure sensor,to ensure the automatic rejecting of any tablet without a core in the center of tablet.

  This machine can be used as a normal tablet press or for the production of double layer tablets after a slight alteration.When used to produce the covered tablets,attention should be drawn to the control of the hardness and the precision of the dimension of the core tablet.ZPW20 Rotary Covered Tablet Press is also applicable in other industries such as foodstuff and chemical,in addition to the pharmaceutical industry to meet the need for the compression of two types of granular materials that are not to be mixed or for the protection from oxidation,control of light avoidance or time release tablets.

  Technical parameter:

Main Technical Specifications

Model

Unit

ZPW20

Number of Station



20

Max.Diameter of Tablet

mm

12

Max.Thickness of Tablet

mm

9

Max.Depth of Fill

mm

18

Max.Compression

KN

80

Max.Outer Diameter of Core Tablet

mm

9

Max.Thickness of Core Tablet

mm

5.5

Rotary Speed of the Turret for Normal Tablet

rpm

12 - 36

Rotary Speed of the Turret for Covered Tablet

rpm

6 - 12

Max.Capacity for Normal Tablet

tablet/h

14,400 - 43,000

Max.Capacity for Covered Tablet

tablet/h

7,000 - 14,400

Power of Main Motor

kW

4

Dimension

mm

920 x 970 x 1900 (LxWxH)

Weight

kg

1600
