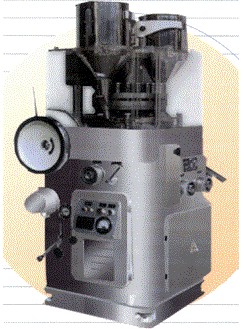

ZPW-21 rotary tablet press

  This machine is designed for pressing tablets form various kinds of granular materials.As its feature,the machine can press not only round tablets but also different geometrical shape tablets,double-layered and annular tablets.The tablets may have the impressed letters on both sides.The turret carries 21 sets of movable-punches and dies,so 21 tablets will be pressed for easy revolution of the turret.During operation,the depth of the filling material and the thickness of the tablets can be adjusted.The pressure for tablet pressing is set by the hydraulic drive system .A pressure gauge is attached to the system to show the pressure value.A overload protection unit is included the system to avoid the damage of the punches and apparatus.When overload occurs,the machine will stop automatically.

  New type ZPW21 is designed according to meet GMP standard.An improved type of ZPW21 Its pressing area is sealed with four plexiglass doors to be isolated with outside environment.The parts touching with the raw material are made of stainless steel or their surface is specially antisepticised to avoid pollution.

Dies

21sets

Max.Pressure

80KN

Max.Dia of Tablet

20mm

Max.Depth of Fill

18mm

Max.Thickness of Tablet

9mm

Turret Speed

12-36 r/min

Production Capacity

15000-45000pc/h

Motor

3kw1440r/min380/50 V/Hz

Overall Size

900×840×1640mm

Net Weight

1200kg
