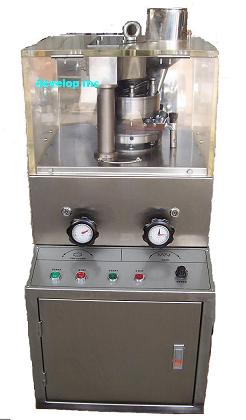

ZP 5-9 ROTARY TABLET PRESS

  Main Introduction:

  Meeting the GMP standard,ZP-5,7,9 type tablet presses are ideally-designed to press granular raw materials into round,non round tablets for laboratory use for laboratory use for research and development or small-scale production in pharmaceutical,chemical and food industry,The working part is enclosed by transparent windows so that press condition can be observed clearly and the windows can be opened .Cleaning and maintenance is easier .The machines feature small volume,low weight,low noises and tidy appearance .The alarming system and vacuum cleaner are attached .The speed adjustment of the driver is controlled by the frequency conversion device.

  Technical parameters:

Machine name

ZP-5

ZP-7

ZP-9

Dies

5sets

7sets

9sets

Max.Pressure

40kn

Max.Dia of Tablet

13mm

Max.depth of Fill

15mm

Max.Thickness of Tablet

6mm

Turret Speed

0-32r/min

Production Capacity

9600pc/h

13440pc/h

17280pc/h

Motor

1.1 kw,1440r/min,220,380/50v/hz

Overall Size

480*650*1150mm

Net Weight

260kg
