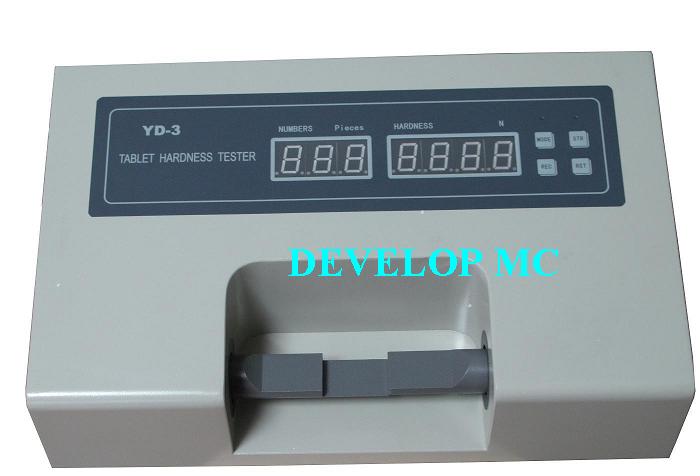

YD-3 Tablet Hardness Tester

  Tablet hardness testers are the instruments for detecting breaking hardness of tablet .

Applicable standard

  Corporate standard (Tablet hardness tester)Q/12XQ0186-2005


  1. The tablet is loaded artificially and pressed automatically.

  2. There is high accuracy press sensor and hardness data is displayed in LED

  3. It tests tablet hardness continuously.The biggest number is 100piece of a gang.

  4. Time of testing will be saved by directly measuring the diameter.

  5. Test data is displayed and locked automatically .so can test be reset and cycled .

  6. It can deal with and memorize such data as :hardness of each tablet .the maximum value,the minimal value .the average value,the number of tablets .

  7. The parameters can be preset at any time .Eight preset or real data is displayed on the LED.

  8. Automation :auto-test .auto-diagnose.auto-alarm


  1.Test range (2-199.9)N

  2.Test accuracy Max.*( ±0.5%)

  3.Probe procession range (3-40)mm

  4.Test period ≯20S/P

  5.Max number in each group ≤100Piece

  6.Power 220V/110V,1 phase /60W or

  7.Dimension 400×240×160mm

  8.Weight 10KG
