Home > Products > PACKAGING MACHINERY > Blister packing machineBlister packing machine

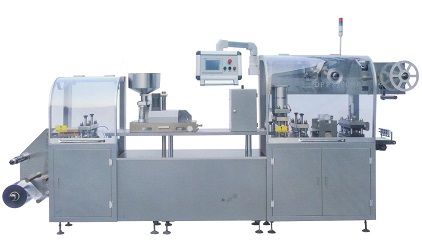

　　The design structure of DPP-250 series automatic blister packing machine is meeting to the standard requirements of GMP,cGMP AND THE DESIGN PRINCIPLE OF ERGONOMICS.It adopts advanced smart driver and control technology.Shanghai develop’ packing machine is very suitable for your market and meet your needs.It can help you solve complex problem and face the future competition.As to the packing technology,DEVELOP can provide you integrated and extensive technical tips,strong competitiveness and rich experience.

　　Descriptions:

　　The structure is rational,And elements of electricity and gas are all from Siemens and SMC,making sure that the machine can run stably for a long time

　　Adopt humane design,combination of split,and can enter into lift and cleaning room.

　　The installation of mold adopts fast-installing screw.Travel route adopts mathematical control.And it is convenient to change specification.

　　It has vision rejection function(option),ensuring the integrity of the product.

　　Reserve the position of forming material,meet the requirements of technological production.

　　Ensuring the safety of operation and each station have visible safety cover.

　　Ensuring the safety of operation and each station have visible safety cover.

　　It can be connected to other equipment,and work together.

　　Technical Parameters:

　　1) Punch frequency: 20 - 60 times/min,stable speed is 50times/min

　　2) Max packing film width: 260mm

　　3) Max.forming area and depth: 250 x 120 mm,depth 15 mm

　　Can update to depth 35m by extra charge

　　4) Air compressor: ≥0.3m3/min ,0.5-0.7 Mpa (self -prepared)

　　5) Power: 5.7kW,AC 380V/220v,50/60hz,3 PHASE

　　6) Dimensions: 3,800 x 800 x 1,800mm

　　7) Weight: 1,500kg
