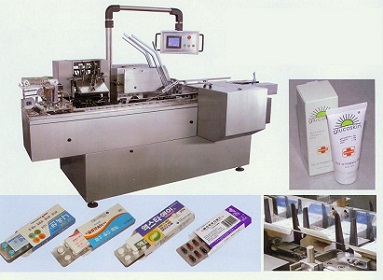

Descriptions:

　　It is suitable for packing pharmaceutical AL/plastic plate and other related similar

　　contact compact with automatic fish folding,forming.Opening and loading,batch

　　number printing as well as sealing processes and soon on.It adopts PLC control,photoelectric supervision to coordinate with every parts.Once something unexpected

　　happens when its operating,it can stop and display the reasons automatically,it's

　　convenient to solve the troubles in time.This machine can be used separately,and

　　also can used with other blister packing machine.

Features:

　　1.Touch screen and PLC control

　　2.GMP standard

　　3.Easy and fast size change range

　　4.Secure inserting of product and leaflet

　　5.Various coding,such as emboss

　　6.Carton rejection by mission leaflet.

Technical parameters:

　　1) Running speed: 60 - 120 boxes/min

　　2) Size range of cardboard box: L*W*H From 65 *20*12mm to 220*88*60mm

　　3) weight of cardboard box: 250 - 350gram

　　4) weight of operation manual: 55 - 65gram

　　5) Electric source: 380V,three-phase A.C.,50Hz,power: 1.5kW

　　6) Compressed air: 0.6MPa

　　7) Air compressor: more than 0.22m3/min (self -prepared)

　　8) Overall dimensions: 2800*1400*1650mm

　　9) Weight: 1200kg
