Home > Products > PREPARATION MACHINERY > Tablet Capsule Counting MachineTablet Capsule Counting Machine

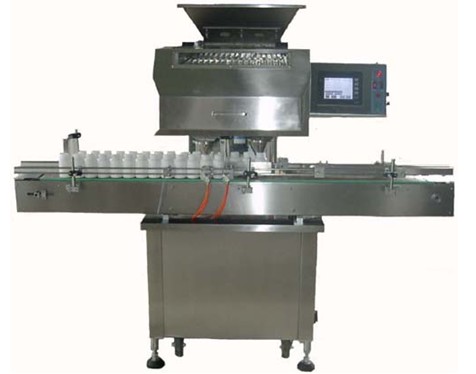

16 channels LED counting and filling machine
Descriptions:
High speed electron counting & filling machine is suitable for different shape and specification tablet,capsule,pill and do not need to change mould.It is convenience and accurate.
1.Using shake approach,has 16 chute,high speed
2.Accounting is accurate,the error below 1‰
3.Stable running,low noise
4.Continuous running,do not stop when change the bottle
5.Be suitable for different shape tablet,capsule,pill
6.Two chutes for feeding bottles to prevent stop
7.Intelligent design,self-checking,trouble hint,alarm,emergent stop and so on,easy and safe.
8.Airproof and dustproof,easy to disassemble,according with GMP
Technical parameters:
|
Item |
LED-16 |
|
Technology |
LED technology |
|
Power |
500W,220V/110v,50/60HZ |
|
Application Range |
00# to 5# capsule/span> φ≥7mm diameter tablet or pill and all kinds of caplet |
|
Bottle neck diameter (mm) |
Min 25 |
|
Bottle body diameter (mm) |
35-60 |
|
Volume of bottle (variable) |
15-300 ml or according to customer |
|
Output Capability(ps/min) |
3000-6000 |
|
Overall dimensions (mm) |
1600*1250*1600 |
|
Weight(kg) |
450 |
